Piezo buzzer shield
"Piezozzers use the inverse piezoelectric principle to create movement of a ceramic disc to produce sound waves. The buzzer includes a built-in oscillating circuit. Piezo buzzers operate over a wide temperature range and create noises ranging from soft and gentle to loud and aggressive."
Sure you could buy a shield but wheres the fun there.
This is a cool addition to your now growing collection.
Okay let's go..
Parts needed :
PCB Board

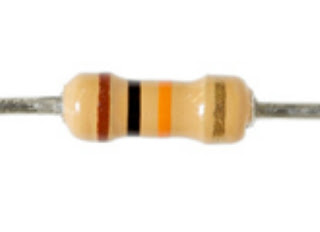

Resistor
Header Pins
Once you have all materials get er going.
This is super simple:
place the buzzer on the pcb ( the example I know is a breadboard... but it at least shows ya)
Connect postive end of buzzer to.resistor and from there to a header pin.
Connect negative end of buzzer to header pin.
